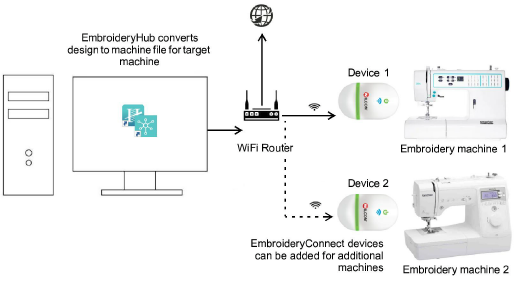

In summary, the EmbroideryConnect device allows you to wirelessly transfer embroidery designs from Hatch Embroidery to one or more USB-enabled embroidery machines. Designs are transferred to the EmbroideryConnect device via the EmbroideryHub application.
A separate EmbroideryConnect device is needed for each embroidery machine on the network.
Device features are summarized below:
|
Item |
Description |
|
EmbroideryConnect device |
The device itself is small and compact. It can plug directly into an embroidery machine USB port via USB cable. |
|
USB Type-C connection |
USB Type-C connection at top to connect device to computer or embroidery machine. |
|
USB Type-A connection |
Used for USB barcode scanner. Barcode reader capability is only available with EmbroideryStudio. |
|
Device state indicator |
The device displays basic status information. See Send open designs to an EmbroideryConnect device for details. |
|
Power from USB |
No separate power supply needed – power is drawn from USB port. |
Tip: The EmbroideryConnect device comes with mounting strips to attach it to the target machine.
