Display hoops

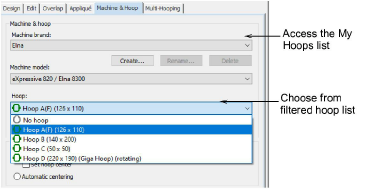

Click Customize Design / Context > Machine & Hoop Options to change machines, set up hoop lists, and define custom brands and hoops.


Click View > Show Hoop to show or hide hoop. Right-click for settings.


Click View > Show Hoop Template to show or hide hoop template.

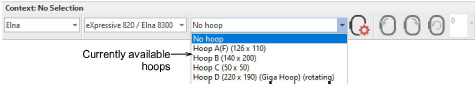

The Hoop List on the Context toolbar shows which hoops are currently available for your selected machine brand and model. When you first run the software, the hoop list is populated with standard hoops for the selected machine model. This list may be configured to include non-standard hoops you may wish to use.




Alternatively, right-click the Show Hoop button to change hoop and/or machine selection via the dialog. The hoop list is filtered to display compatible hoops.
