Insert designs

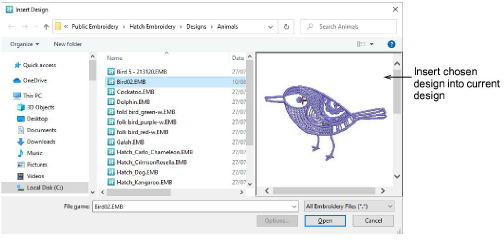

Use Customize Design / Standard / Create Layout > Insert Design to insert an existing embroidery design into the current design. This tool is also available via File menu.

The simplest way to create design layouts is to simply combine designs or design elements into a single design layout. Hatch Embroidery lets you insert one design into another. Use the Insert Design tool on the Standard toolbar or Customize Design toolbox.

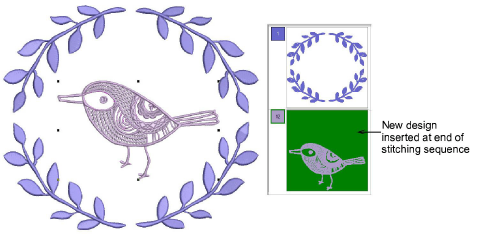

By default, the inserted design will be added to the first design and appear after it in the stitching sequence. The two (or more) designs can then be saved as a single combined design.

Tip: Alternatively, travel to the point in the stitching sequence where you want to insert the second design. You can insert a design between objects in the sequence, or ‘nest’ the design within an object. By default, inserted designs will be grouped and centered on the screen.

Insert designs
