Contour fills


Use Object Properties > Fill > Contour to create stitching which follows object contours, creating a curved, light-and-shade effect.


Use Digitize > Circle / Oval to quickly digitize circular shapes using current stitch settings.


Use Digitize > Digitize Blocks to digitize column shapes of varying width, setting the stitch angle at each pair of points.

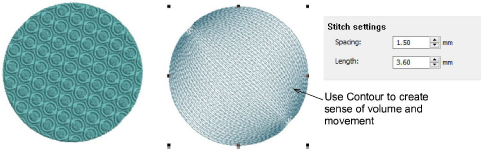

Contour is a curved fill stitch type – stitches follow the borders of a shape, creating a curved, light and shade effect.




Use it to create a sense of movement in contrast to flatter fills created by satin or tatami stitching. It can be used with Circle or Digitize Blocks input tools.

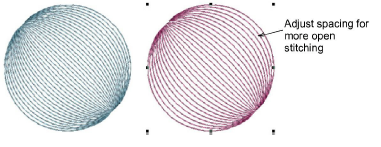

Adjust stitch length for smoother or sharper curves. Adjust stitch spacing for denser or more open stitching.

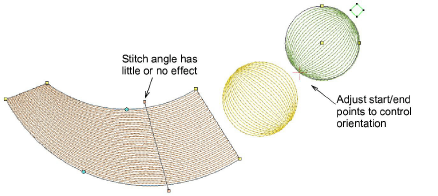

Stitch angle has no effect on pattern layout in block objects but it does in circle objects.
