Once you have selected a digitizing method, you create shapes by marking points along an outline.

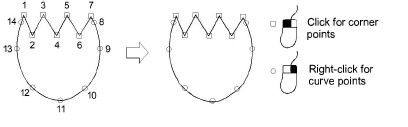

Use the left mouse button for corner points and right mouse button for curve points. Press Enter to complete a shape.
A few general rules apply:

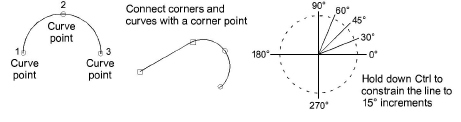

To constrain the line to 15° increments, hold down Ctrl as you digitize.
For a perfect circular arc, mark three points with a right-click, and press Enter.
|
|
|
Entry point |
|
|
Exit point |
|
|
|
Corner reshape node |
|
|
|
Curve reshape node |
|
|
|
Stitch angle points |
The reference points you mark when digitizing a shape become its ‘control points’. These vary slightly with the object type. Most points can be added, deleted, or moved. Corner and curve points can be interchanged with the Spacebar. Some control points such as entry and exit points cannot be deleted but can be moved.
