Cut shapes manually

Use Lettering / Monogramming or Edit Objects > Knife to cut objects along a digitized line, preserving stitch settings and colors.

Use Edit Objects / Select > Reshape to reshape an object outline, edit stitch angles, or adjust entry and exit points.

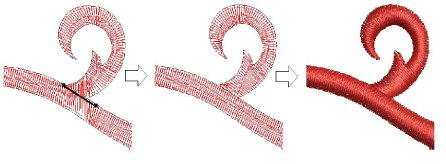

Depending on your product level, the Knife tool may be available in your Edit Objects toolbox. Use it to manually cut closed or block-digitized shapes into smaller fragments. It can, for instance, be useful when editing artwork converted to embroidery with auto-digitizing methods.

The Knife tool has two modes of operation:

With nothing selected, it will cut all objects under the knife.

With selected objects, it will only cut those within the selection.

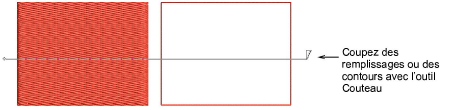

The Knife tool will cut both filled objects and outlines. This is often necessary when objects include an outline type of stitch which also needs to be cut. This is often the case, for example, where you want to make a split monogram. It also affects any object with a z-z underlay, blanket stitch, etc. It also affects machine format designs that you may work with.
