Scanner setup

Your embroidery software supports TWAIN-compatible scanners. Peripheral devices can be connected to your computer via serial ports, parallel ports, a specialized network card or an Ethernet network.

To set up the scanner...

1Connect the scanner using the accompanying instructions.

2Set it up in MS Windows® using the accompanying instructions and/or the MS Windows® documentation.

3Start Hatch Embroidery.

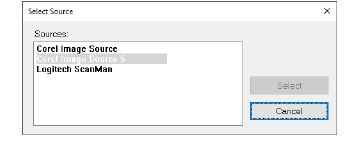

4Select Software Settings > Scanner Setup. The Select Source dialog opens displaying a list of scanner drivers loaded on your computer.

5Select the scanning driver to use, then click Select.

Note: If you have trouble with scanning after re-starting the software, there may be a conflict with previously installed scanner drivers. Re-install the software and test the scanner. If the selected scanner driver does not work, select another scanner driver from the list. There are usually two installed for each scanner.
