Set up machine connection


Use Output Design / Context > Transfer Design to transfer current design to the design folder. Right-click for settings.

In order to utilize the Transfer Design capability, you need to configure you machine connection to a specific network location. If there is nothing set up for a specific brand/model/type, you will be automatically prompted to configure machine details upon clicking the button. The dialog allows you to set up multiple brand, model/type combinations to use with the Transfer Design tool. When the machine is selected as current, the design will be transferred according to the machine details set here.

To set up a machine connection...

1Right-click the Transfer Design button. The Machine Details dialog opens.

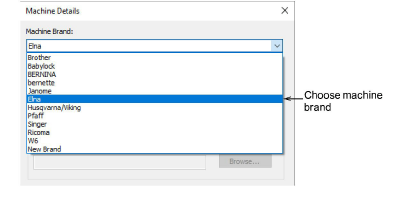

2Select your machine brand and model from the droplists.

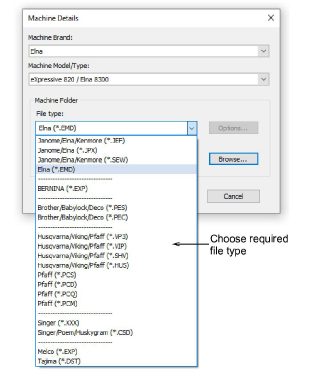

3Select the file type required by the machine.

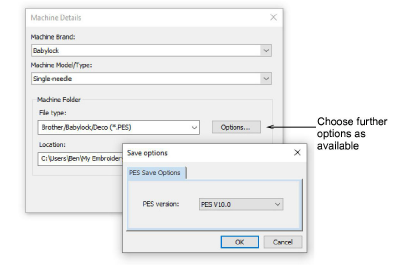

4Depending on the selected file type, further options may be available via the Options button.

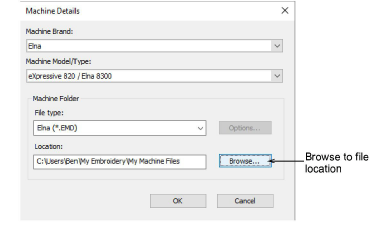

5Enter or browse to a file location on the network or the PC.




6Click OK when complete. The new machine and machine folder will now be preset for the Transfer Design button.
