Hooping improvements

The Hatch Embroidery 3.1.5 update contains the following hooping improvements...

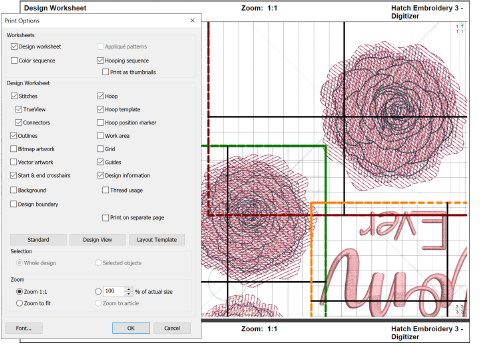

Hooping sequence print options

Use Output Design / Standard > Print Preview to preview design worksheet. Print from preview window.

Problems have been reported with Print Options for the hooping sequence. The expectation is that the Print Options > Zoom 1:1 setting will display the hooping sequence at actual size. The problem has been rectified with the current update.

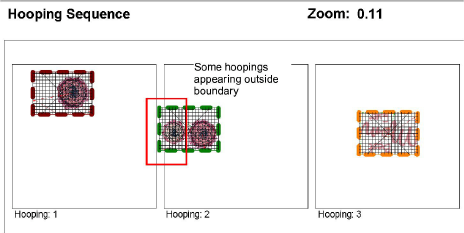

Hooping sequence display in thumbnail view

A problem has been reported with the hooping sequence in print preview. When set to ‘print as thumbnails’, some hoopings lie outside the boundary. The problem has been rectified with the current update.

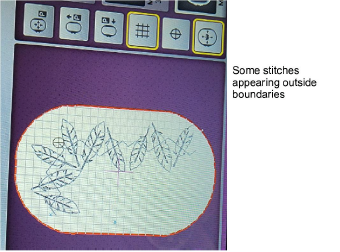

Multi-hoop designs

Problems have been reported when opening multi-hooped designs on machine. These include:

Shifts occurring in split files
Registration marks appearing outside the frame
Stitches appearing outside the frame

To rectify these issues, auto-centering must be turned off on the machine.

Viewing blocks when previewing hoopings

A problem has been reported with block display in hooping previews. The right side of the block may be clipped. The problem has been rectified with the current update.

Exported PES file using 360x360 rotating hoop

A problem has been reported when exporting PES files using a 360x360 rotating hoop. The file fails to load correctly on a Babylock machine. The problem has been rectified with the current update.
