Break apart lettering

Use Edit Objects, Appliqué or Lettering / Monogramming > Break Apart to split composite objects – monograms, appliqués, lettering, etc – into components. Allows each to be edited individually. This tool is also available via Edit menu.

Lettering can be progressively broken apart down to individual letter patches.

To break lettering apart...

Select the lettering object and click Break Apart.
Individual lines are broken into separate words.

Individual lines are broken into separate words.

Tip: Multi-line lettering is first broken into separate lines.

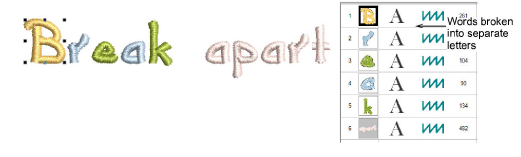

Words are broken into separate letters.

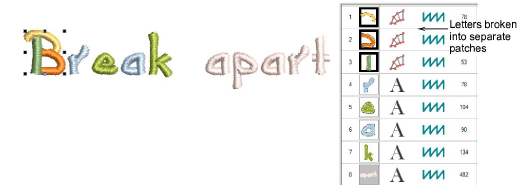

Letters can be broken into their individual embroidery patches. Lettering properties are lost. Only general embroidery object properties remain.

Note: An exception for single-line (multi-word) objects is the case of the center-out stitching sequence. Such objects are broken apart directly into single-letter objects. The stitching sequence is thereby preserved.
