Use Digitize > Carving Stamp to show Carving Stamp docker. Use to create needle penetrations with a 'carving stamp' as template.
|
|
Use Digitize > Carving Stamp to show Carving Stamp docker. Use to create needle penetrations with a 'carving stamp' as template. |

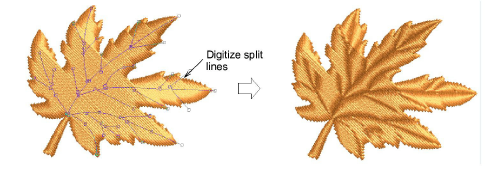

The Digitize tab allows you to digitize split lines and directly apply in situ or to any applicable objects in the design window.
1Open the docker and select the Digitize tab.
2Optionally, select embroidery objects. If preselected, stamps will apply only to these objects.
3Click the Start Digitizing button. You are prompted to enter a starting point.
4Digitize split lines. Press Enter once to complete a boundary. Press BkSp to correct mistakes.
5Press Enter again to finish. Alternatively, press Esc to cancel the operation and start again.
6Click the Stamp button to apply the stamp to selected applicable objects.
7Click the Use Stamp button to position the stamp. You are prompted to enter an anchor point as with predefined patterns.
8Optionally, click the Create Stamp button to add the selection to the library for future use. See below for details.
