Adjust stamp appearance

Use Edit Objects / Select > Reshape to reshape an object outline, edit stitch angles, or adjust entry and exit points.

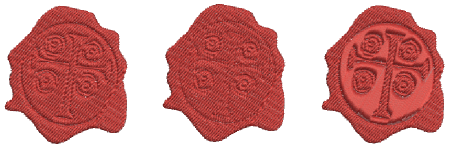

The Appearance tab of the Carving Stamp docker provides settings which will soften or intensify the effect. Click the Clear Stamps button to remove all existing stamps from selected objects.

Usage tips

Carving stamps can be moved, rotated, scaled, reshaped, and deleted individually in Reshape mode.
As you transform carving stamps, needle penetrations in the underlying object are automatically updated.
To reshape a carving stamp, select an embroidery object in Reshape mode with carving stamps applied. Selection handles appear.
Use these to scale, rotate, or stretch the stamp.

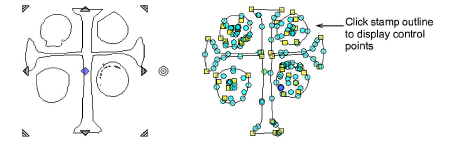

Click the stamp outline again to display control points. Use these to reshape the stamp.
