Add stamps to a library

Use Digitize > Carving Stamp to show Carving Stamp docker. Use to create needle penetrations with a 'carving stamp' as template.

This procedure starts when you click the enabled Create Stamp button either on the Use Object tab or Digitize tab in the Carving Stamp docker.

To add a stamp to a library...

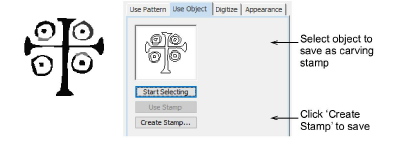

1Select the Use Object tab.

2Click Start Selecting and select the target object.

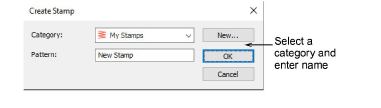

3Click the Create Stamp button. The dialog opens.

4Select a set from the droplist or click the Create button to create a new one.

5Enter a name for the new stamp and click OK. You are prompted to digitize the first reference point.

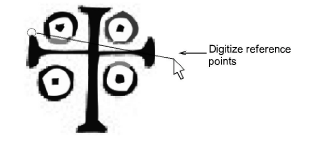

6Digitize two points as prompted. These will be used during stamp placement. Alternatively press Enter to accept the defaults.

7Click OK. The newly created stamp is displayed in the stamp list when the Use Pattern tab is selected.

8The Rename and Delete buttons are enabled in the Use Patterns tab whenever a custom stamp is selected.
