Export design lists

Use Manage Designs > Export Design List to export a text or CSV file containing a list of the visible design files and their properties.

The Export Design List option can be used to print design lists for selected folders. This option allows you to create a simple design report which can easily be imported into a spreadsheet. You may want to use this in order to manage designs by file name.

To export a design list...

Preset the measurement units you want to use – metric or U.S.

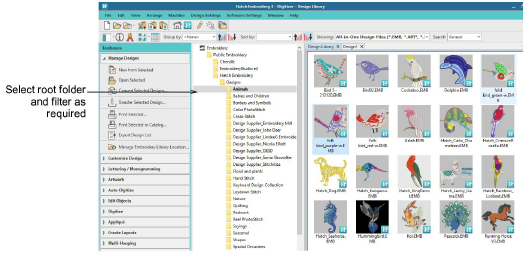

Open Design Library and select a design folder.

Sort and filter the designs to be printed. See also Browse designs.

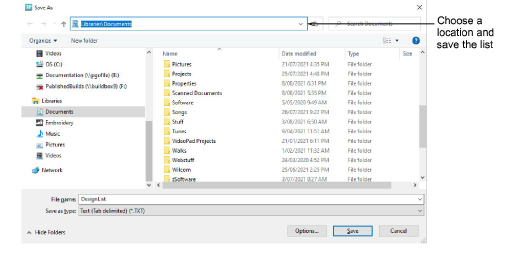

Click the Export Design List icon and choose a location to save the list. Choose whether to save as a tab-delimited or comma-separated text file.

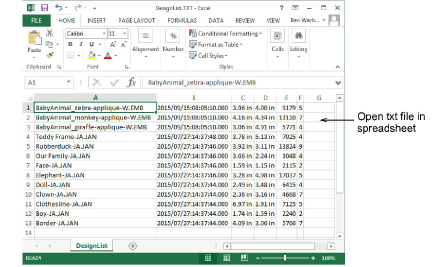

Open the text file in a spreadsheet for further sorting and printing.
