Scan artwork

If you have existing artwork, you can scan it with a TWAIN-compatible scanner using the scanning function. It is important to scan your artwork properly if you intend to use one of the automatic digitizing methods. The scanned image quality will affect the quality of the final embroidered design.

With embroidery design, less is more. You do not need every detail in an image to create a design. You use the ‘structure’ of the image rather than the fine details of texture and color. To simplify artwork, you can cover it with tracing paper and draw only the essential shapes and lines which will be filled with stitches. When scanning, take away the original artwork and put white paper behind the tracing paper. Shiny surfaces, such as glossy photographs, may not scan well. Cover them with tracing paper. If the artwork has very light colors, highlight outlines with a fine black felt-tip pen.

Scanning resolution

Most scanners require you to enter scanning resolution information. Resolution determines the number of dots per inch (dpi) used to create a drawing. The higher the value, the clearer the image but larger the file. For digitizing purposes, use a maximum resolution of 300 dpi (dots per inch). A resolution of 72 dpi (screen resolution) will usually be sufficient. Generally speaking, the smaller the source image and/or more detail it contains, the higher the resolution needs to be. Use the following table as a guide.

Type of artwork

Scanning resolution

Business cards, letterheads

150 – 300 dpi

Hand sketches

150 – 300 dpi

Photos and images

150 – 300 dpi

Commercial art, line drawing

72 – 150 dpi

Color mode

Most scanners also require you to enter color mode information. First decide whether your image is line art (black and white drawing), sketch, color picture, or black and white or color photograph, then choose an appropriate mode. Black and white mode produces the smallest files. Color photograph and grayscale modes generate 256 color images and produce similar sized files. ‘RGB’, ‘True Color’ or ‘millions of colors’ modes generate 16.7 million colors and produce the biggest files. Use the table below to decide which mode is suitable for use with your image.

Source

Sample

Description

Color mode ^

Colors

Line art


Two colors – usually black and white

Black / white drawing

Line art

2

2

Drawing


Sketch or drawing with shades of gray

Grayscale

Line art

256

2

Color picture


Two colors or more

Color RGB

Millions of colors

Color drawing

16 mill

16 mill

2 – 256

^ Different scanning software uses different terms for the same mode.

Color depth

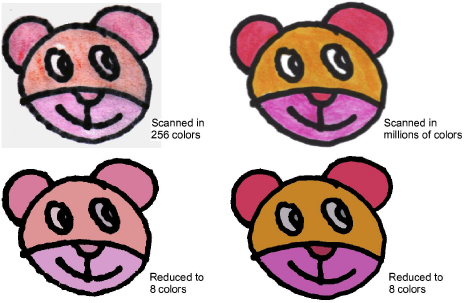

Scan color images in RGB mode (millions of colors) rather than 256 color mode. You may not notice any difference on screen. In fact the 256 color image may look better than the RGB image. However, Hatch Embroidery converts all images to 256 colors or less upon loading. It uses the extra information to produce a better image than if it was originally scanned at 256 colors.




Usage tips

Sharpening

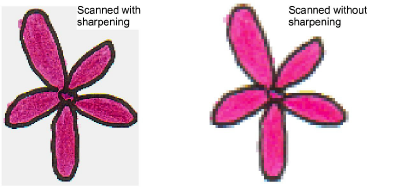

Some scanning software lets you apply what is called ‘sharpening’ as you scan. Sharpening compensates for the slight blurring in a scanned image by looking for any differences between colors in the image. Sharpening accentuates these differences which makes image edges more defined. It does not increase image details but makes them more obvious. In general, use sharpening with images that have well-defined outlines rather than non-outlined images.




Scan artwork


Use Artwork > Scan Artwork to scan artwork directly into the current design window from an attached scanner.

You can scan images directly into the design software for use as digitizing backdrops. The scanning feature allows you to use most TWAIN-compatible scanners. You can use any scanning software provided that it can save the image in one of the compatible formats.

To scan an image...

1Set up your scanner.

2Prepare the artwork for scanning.

3Create a new file or open a design you want to insert the drawing into.

4Go to Artwork > Scan Artwork. Your scanning program will open.

5Choose a scanning mode and resolution.

6Preview the image in the scanning program.

7Select the area to scan and scan the image.

8Save the scanned image in a third-party application. Save in a compatible format to your designs folder.
